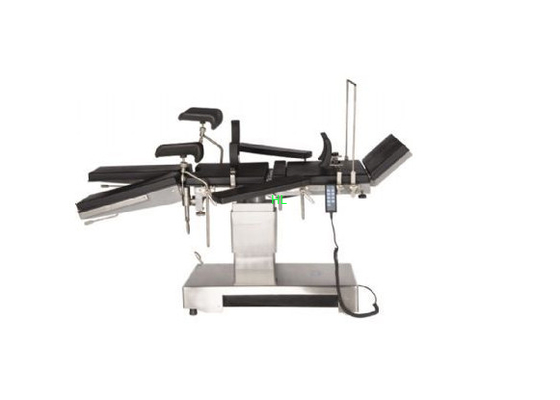

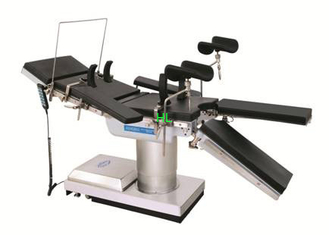

CE / ISO Approved Electric Operating Table For Orthopedic Use

Electro-hydraulic surgical Operate Table for Orthopedic(99C)

Main Usage & Structure

Main Usage:

a)Electric operating table can be operated for clinical use.

b) Structure :Operating table consists of two parts: mechanical and electro-hydraulic control system. Depending on manual operation, the product can meet the requirement of posture in clinical operation.

Specifications

Dimension of table top:

Overall Length………………………………………………………2050mm

Width…………………………………………………………………500mm

Dimension of section:

Head Section……………………………………………………………250×500mm

Back Section………………………………………………………………465×500mm

Waist Section…………………………………………………………75×500mm

Seat section…………………………………………………………550×500mm

Leg Section……………………………………………………………600×240mm

Table top of from floor

Min Height…………………………………………………………580mm

Max Height……………………………………………………………930mm

Adujst…………………………………………………………………………350mm

Range of movements:

Reversed Trendelenburg……………………………………………………………≥20°

Trendelenburg……………………………………………………………≥15°

Lateral Til………………………………………………………………≥15°

Backward and Forward Movements…………………………………………≥350mm

Adjustment of sections:

Head Section Raised  from the horizontal………………………………………≥45°

Head Section lowered from the horizonta……………………………………≥90°

Back Section Raised from the horizontal……………………………………≥75°

Back Section Raised from the horizontal……………………………………≥30°

Leg Section Lowered from the horizontal……………………………………≥90°

Leg section opened………………………………………≥90°

Back rise(When optional)……………………………………≥80mm

Horizonal ratation of tabletop………………………………0～180°

Lifting speed………………………………………………………4～16mm/s

Safe working load……………………………………………………250kg

Device safety sortI     B

Ingress Protection:IPX4

Power:(AC)220V,50Hz

Battery capacity is 14 AH  Battery capacity ≥ 2.4AH

Structure

3.1   The Electric operating table uses electro-hydraulic systems to control all the movements: height adjustment, trendelenburg and reversed trendelenburg, lateral tilt, back movements, forward and backward movement and brake. Head section, leg section and vertical rotation of tabletop are operated by manual operation.

3.2  The table comprises of five sections: head section, back section, Waist Section(When optional), sitting section and leg section. The forward and backward movement and 180 °rotation of tabletop can make C-arm perspective quick and easy.

3.3  Emergency power supply is Optional. Emergency power supply is made of lead-acid batteries, which can be automatically charged. Emergency power supply can start to work automatically when the power is off

3.4  The main material is stainless steel, high-intensity cast iron, aluminum, good solidity.

3.5  Electric operating table made from leatherette mattress for high density sponge outsourcing or polyurethane material overall foam forming, antistatic performance.

3.6  The appearance of the stainless steel round cover and base is nice and elegant. The cover is dust-proof and water-proof. The table is stable and practical.

3.7  Equipped with electric brakes

 Easy to transport, transfer and clean.

Multi—purpose Orthopaedics Frame(98)

1,General Description:

This frame can combination use with various operating tables, for example, head-controlled. Multi-purpose Operating Table, Side-controlled Multi-purpose operating Table, Ordinary Operating Table, etc. It is mainly used for surgical operation of lower limbs. It can be adjusted for different positions.

2,Main Technical Parameters:

Two Traction Frame Pipes Opened………………………………………………………………≥60°

Traction Seat Displacement…………………………………………………………………≥600mm

Traction Distance…………………………………………………………………………… ≥200mm

Range of Height……………………………………………………………………………800~1000mm

3,Accessories:

While being used, the leg section of the must be lowered to 90°,close each other, the pipes and the base of the traction frame be closed, adjust height of the hip section same as the operating table, then it can be used.
